Introduction to a Lathe Machine

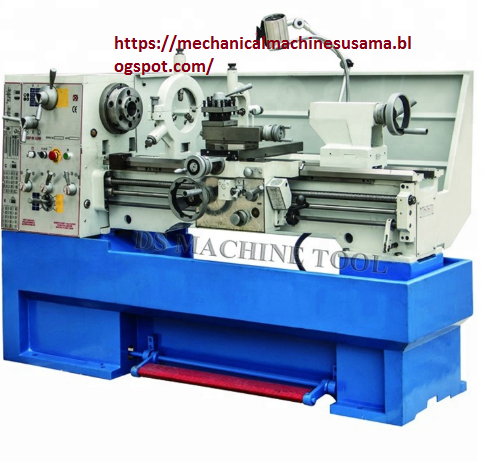

A lathe is a machine tool which rotates the work piece on its axis to perform various operations such as cutting, sanding, knurling, drilling, or deformation, facing, turning, with tools that are applied to the work piece to create an object which has symmetry about an axis of rotation.or The lathe is a machine tool used in metal cutting operations called "turning." The work piece is rotated as tooling is applied to it to remove material. Lathes can be manually operated or operated by computer numerical control (CNC). The lathe bed is a mounting and aligning surface for the other machine components. Viewed from the operating position in front of the machine, the headstock is mounted on the left end of the bed and the tailstock on the right. The bed must be bolted to a base to provide a rigid and stable platform.

Comments

Post a Comment

Popular posts from this blog

Tool Holding Devices in Drill Machine

Tool-Holding Devices: Drill press spindle provides means of holding and driving cutting tool.End may be tapered or threaded for mounting drill chuck. Most common devices are used in Drill presses:       Drill chucks       Drill sleeves        Drill sockets Drill Chucks: Most common devices used for holding straight-shank cutting tools. Most contain three jaws that move simultaneously when outer sleeve turned. Hold straight shank of cutting tool securely. Two common types               Key   Keyless     Drill sleeves:                        Used to adapt cutting tool shank to machine spindle if taper on tool is smaller than tapered hole in spindle   Drill sockets:   Used when hole in spindle of drill press to small for taper shank of drill.  Used also as extension sockets.
Read more

Operations Performs on Lathe Machine

Facing Facing is the process of removing metal from the end of a workpiece to produce a flat surface. Most often, the workpiece is cylindrical, but by using 4- jaw chuck we can face rectangular or odd-shaped work to form cubes and other non-cylindrical shapes. When a lathe cutting tool removes metal it applies considerable tangential (i.e. lateral or sideways) force to the workpiece. To safely perform a facing operation the end of the workpiece must be positioned close to the jaws of the chuck. The workpiece should not extend more than 2-3 times its diameter from the chuck jaws unless a steady rest is used to support the free end. Straight turning In this operation the work is held in the spindle and is rotated whole the tool is fed past the work piece in a direction parallel to the axis of rotation. The surface generated is a cylindrical surface. Taper Turning A taper may be defined as a uniform increase or decrease in diameter of a work piece measured along its length
Read more

Parts of Vertical Milling Machine

Parts of Vertical Milling Machine The vertical knee mill is the most common milling machine found in machine shops today. Therefore it will be used as an example to describe the general parts of all mills. Head                The head (drive) is that part of the drive system that transforms electrical power from a motor to mechanical power in the spindle. The drive system also allows the machinist to change the speed of the spindle (RPM) and therefore the cutting tool. The quill moves vertically in the head and contains the spindle in which cutting tools are installed. Column                The column is the most important part which is mounted on the base and acts as a support and holding device for all the other parts of a milling machine. It acts as a support for table and all feed mechanisms. The column should be rigid enough to sustain all the forces produced due to the drilling action of the tool. The head and worktable are mounted with column. Work table It
